Gearless Traction Machine FJTM05
Rated load: 1250-2000kg
Rated speed: 1.0-2.5m/s
Suspension: 2:1
FEATURE
- Designed by outer rotor. Possible to generate bigger torque with low noise and vibration. Provides a comfortable ride.
- Solid construction for permissible shaft load Fs at the traction sheave up to 35kN
- Safety brake system with electro-magnetical release
- Groove profiles according to lift system
- Perfect rated motor, use of high-performance permanent magnet, degree of protection IP40, insulation class 155°C (F), temperature control
- EC type-examination certificate according to EN 81-20/50, can be used for UCM solution
- Variable options regarding voltage, speed, torque, braking torque and traction sheave parameters
- Both hand wind and hand wind-less types are available
- The braker passed 2 million times braking. After the test, its performance is still in specification. Safety is guaranteed.

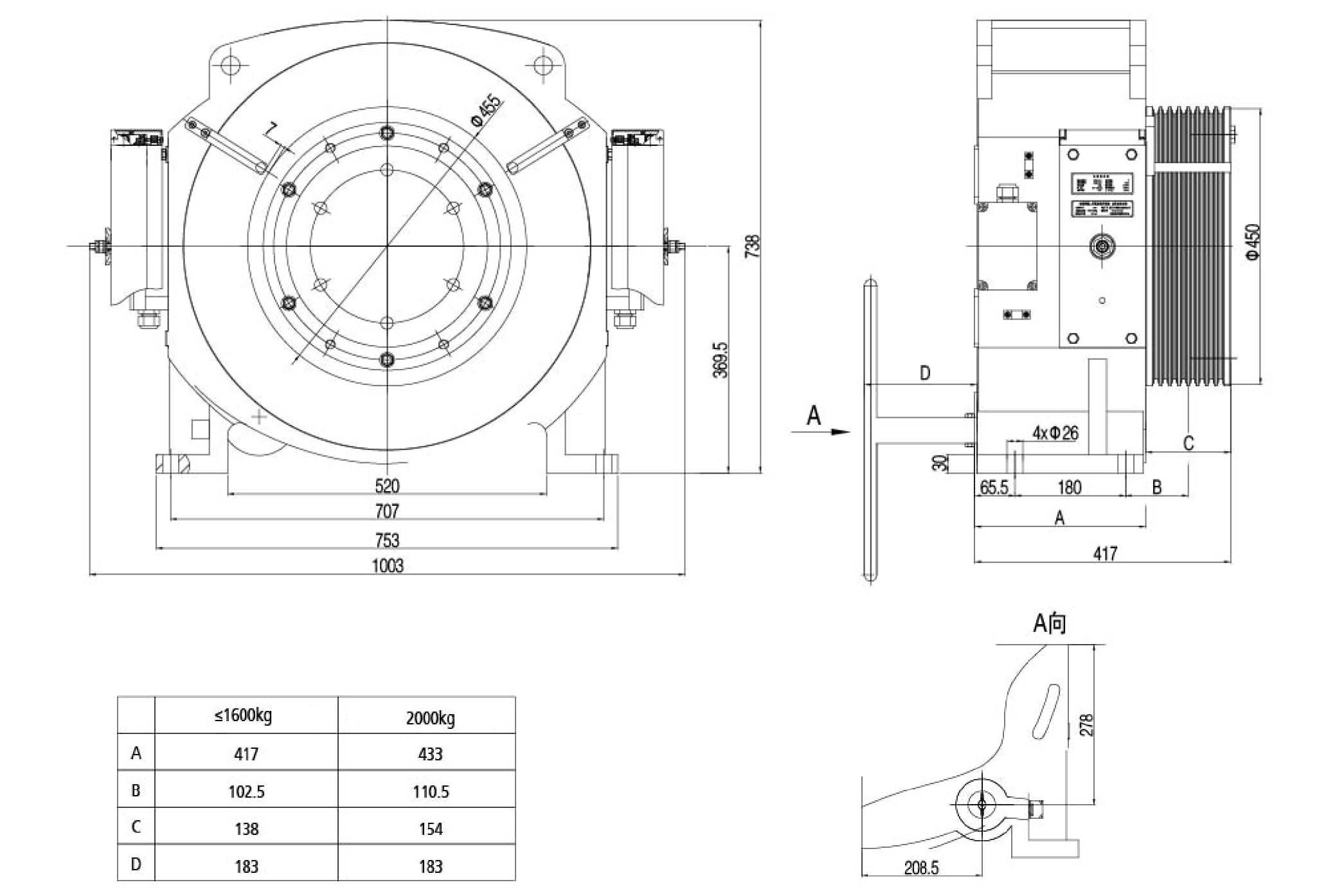

DIMENSION DRAWING

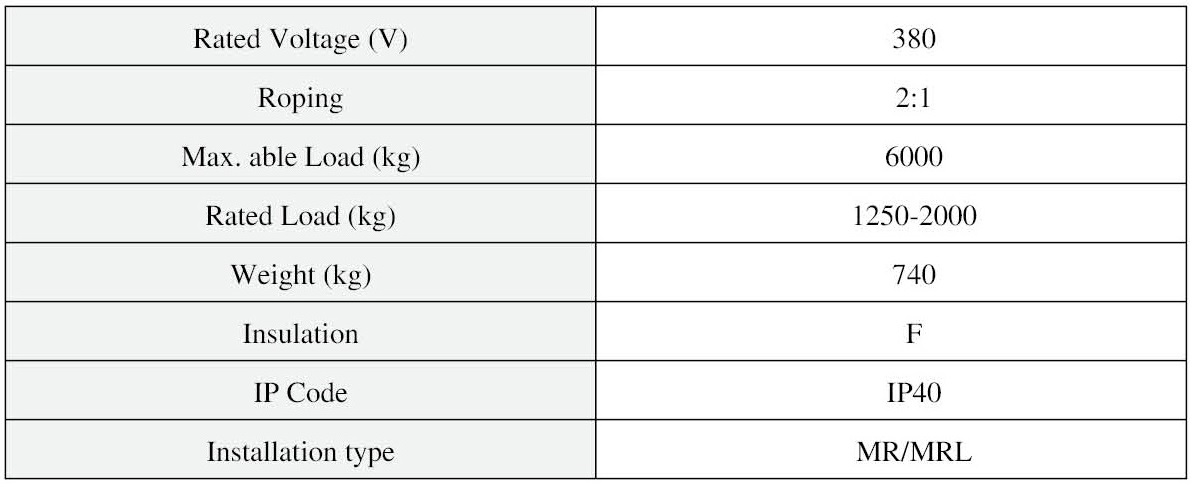

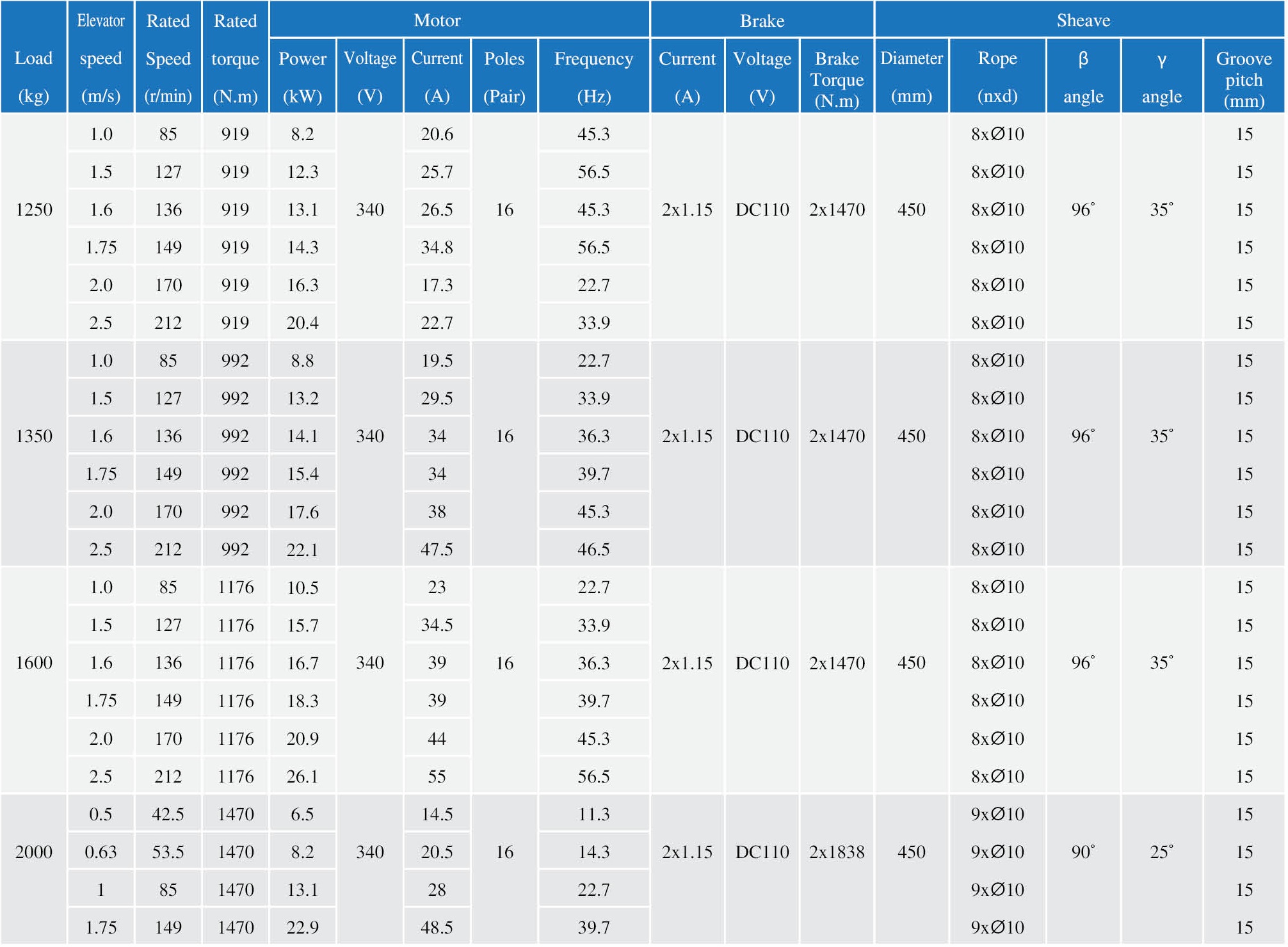

SPECIFICATION
