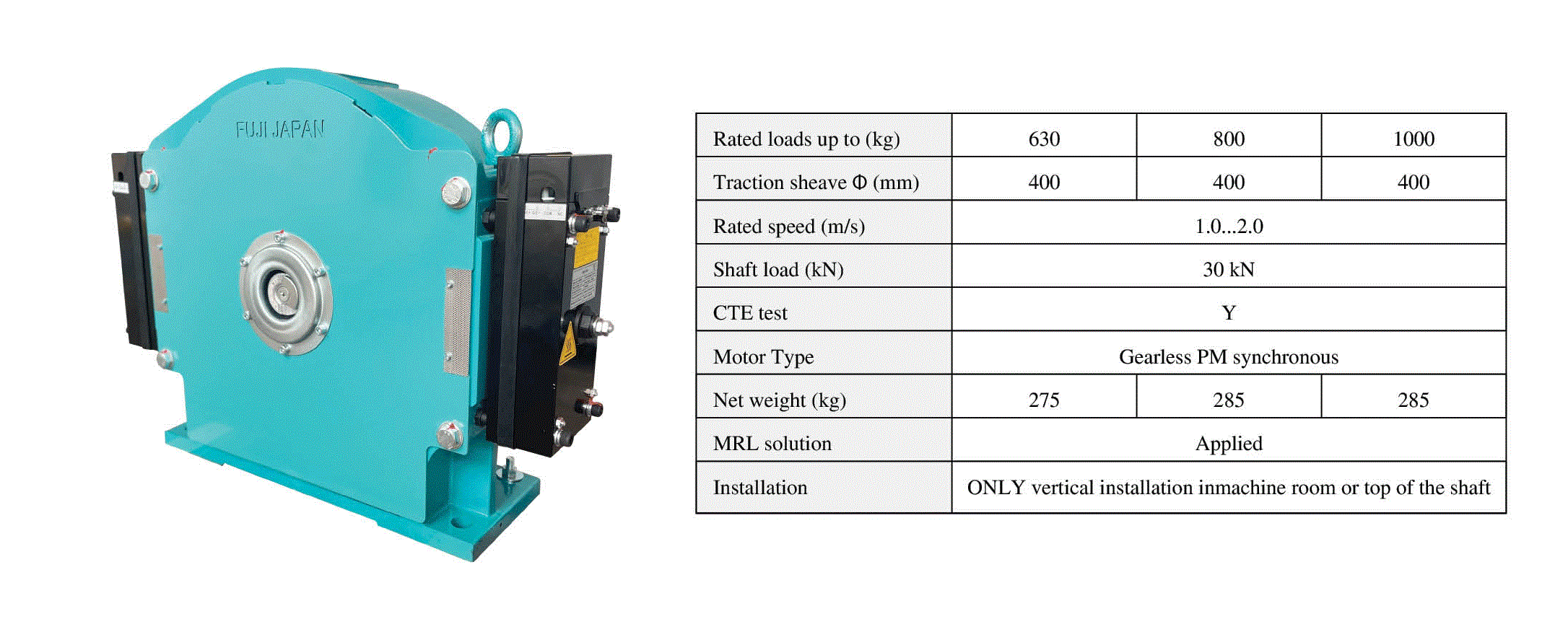

Gearless Traction Machine FJG09
Rated load: 630-1000kg
Rated speed: 1.0-2.0m/s
Suspension: 2:1
FEATURE
- Special housing design provides stable and high structural rigidity. Design is verified FEM and physical mechanical test.
- Designed by outer rotor. Possible to generate bigger torque with low noise and vibration. Provides a comfortable ride.
- Solid construction for permissible shaft load Fs at the traction sheave up to 35kN
- Safety brake system with electro-magnetical release, provides min. 2x950Nm
- Groove profiles according to lift system
- Perfect rated motor, use of high-performance permanent magnet, degree of protection IP40, insulation class 155°C (F), temperature control
-Motor with 2 times overload capacity; max. traveling height up to 120m
- EC type-examination certificate according to EN 81-20/50, can be used for UCM solution
- Inverter compatible measuring device, rigid coupling or integrated. (e.g. ECN 1313; ERN 1387; TS5213N2503; EI53C9.25-2048-SA5N2T)
- Variable options regarding voltage, speed, torque, braking torque and traction sheave parameters
- The braker passed 2 million times braking. After the test, its performance is still in specification. Safety is guaranteed.

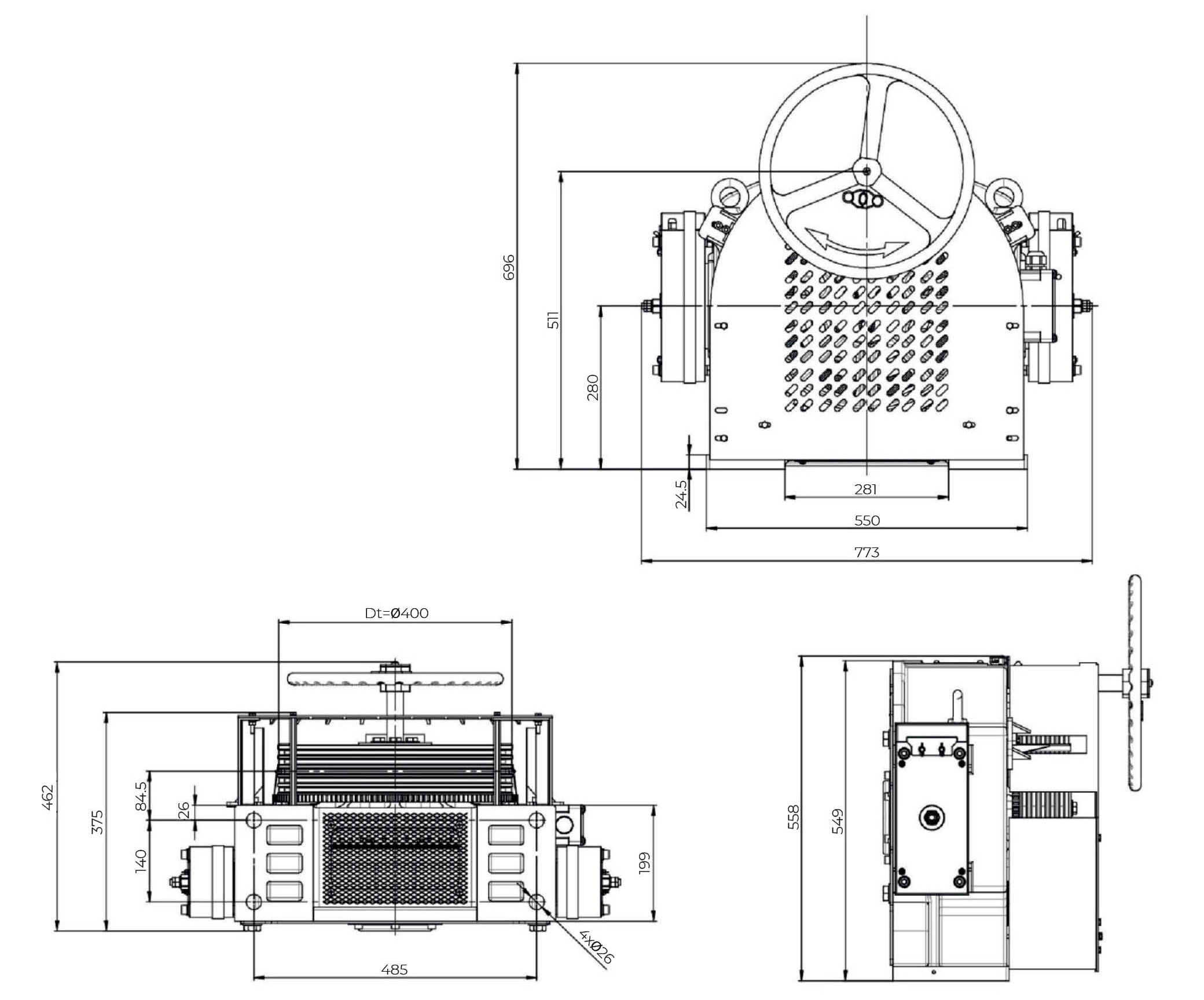

DIMENSION DRAWING

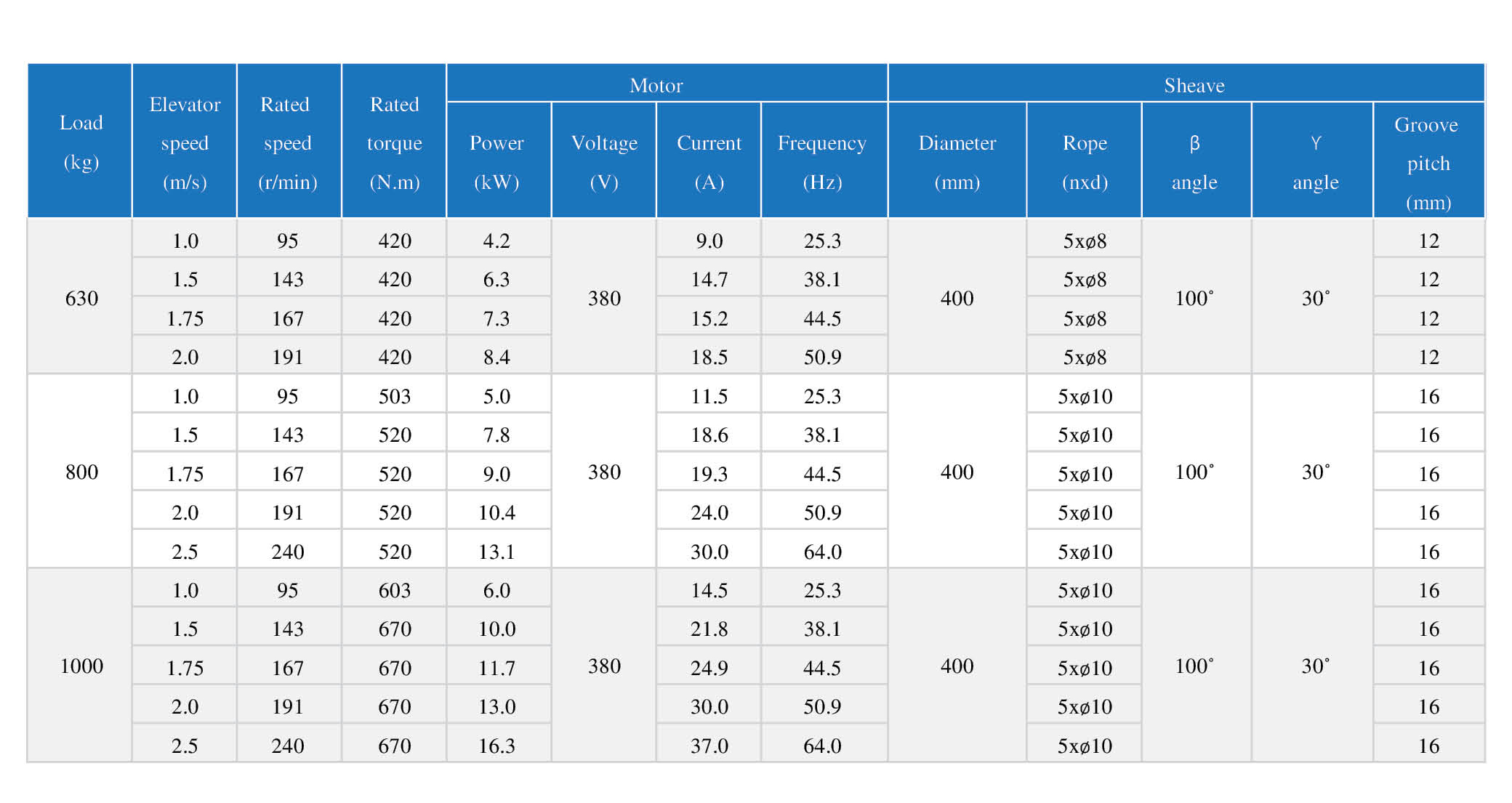

SPECIFICATION
