Gearless Traction Machine FJTM01C

Rated load: 450kg
Rated speed: 1.0m/s
Suspension: 2:1

FEATURE

- Compact design suitable for home elevators

- Designed by outer rotor. Possible to generate bigger torque with low noise and vibration. Provides a comfortable ride.

- Safety brake system with electro-magnetical release

- Groove profiles according to lift system

- Perfect rated motor, use of high-performance permanent magnet, degree of protection IP41, insulation class 155°C (F), temperature control

- Variable options regarding voltage, speed, torque, braking torque and traction sheave parameters

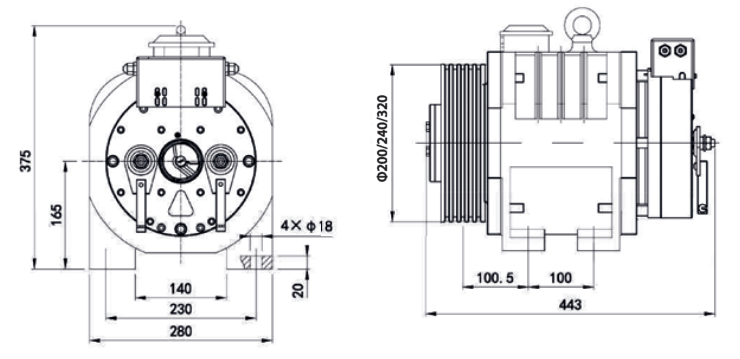

DIMENSION DRAWING

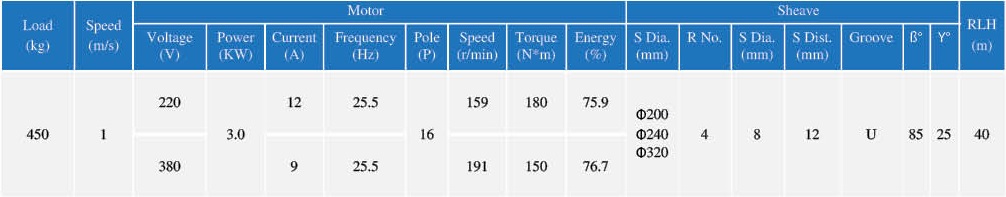

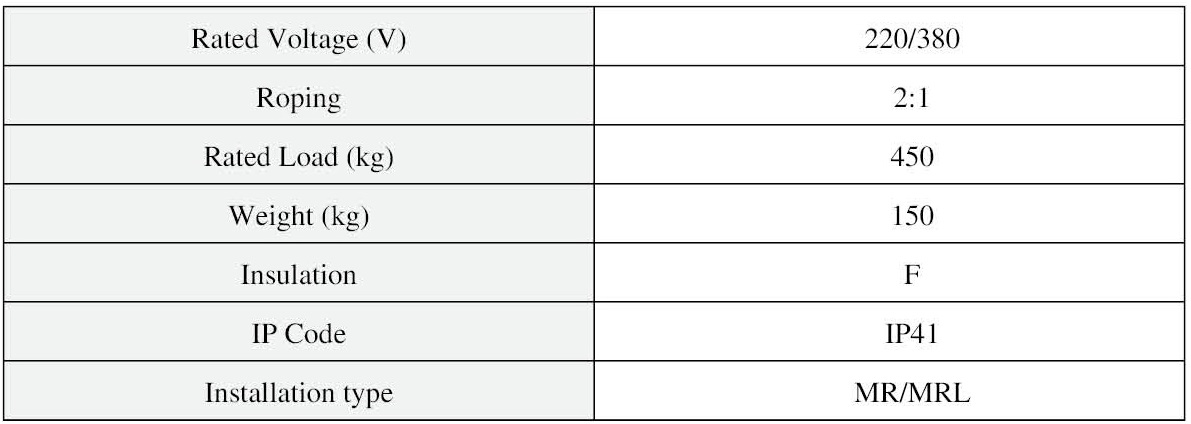

SPECIFICATION
