Gearless Traction Machine FJTM03

Rated load: 630-1000kg
Rated speed: 1.0-1.75m/s
Suspension: 2:1

FEATURE

- Designed by outer rotor. Possible to generate bigger torque with low noise and vibration. Provides a comfortable ride.

- Solid construction for permissible shaft load Fs at the traction sheave up to 35kN

- Safety brake system with electro-magnetical release

- Groove profiles according to lift system

- Perfect rated motor, use of high-performance permanent magnet, degree of protection IP40, insulation class 155°C (F), temperature control

- EC type-examination certificate according to EN 81-20/50, can be used for UCM solution

- Variable options regarding voltage, speed, torque, braking torque and traction sheave parameters

- Both hand wind and hand wind-less types are available

- The braker passed 2 million times braking. After the test, its performance is still in specification. Safety is guaranteed.

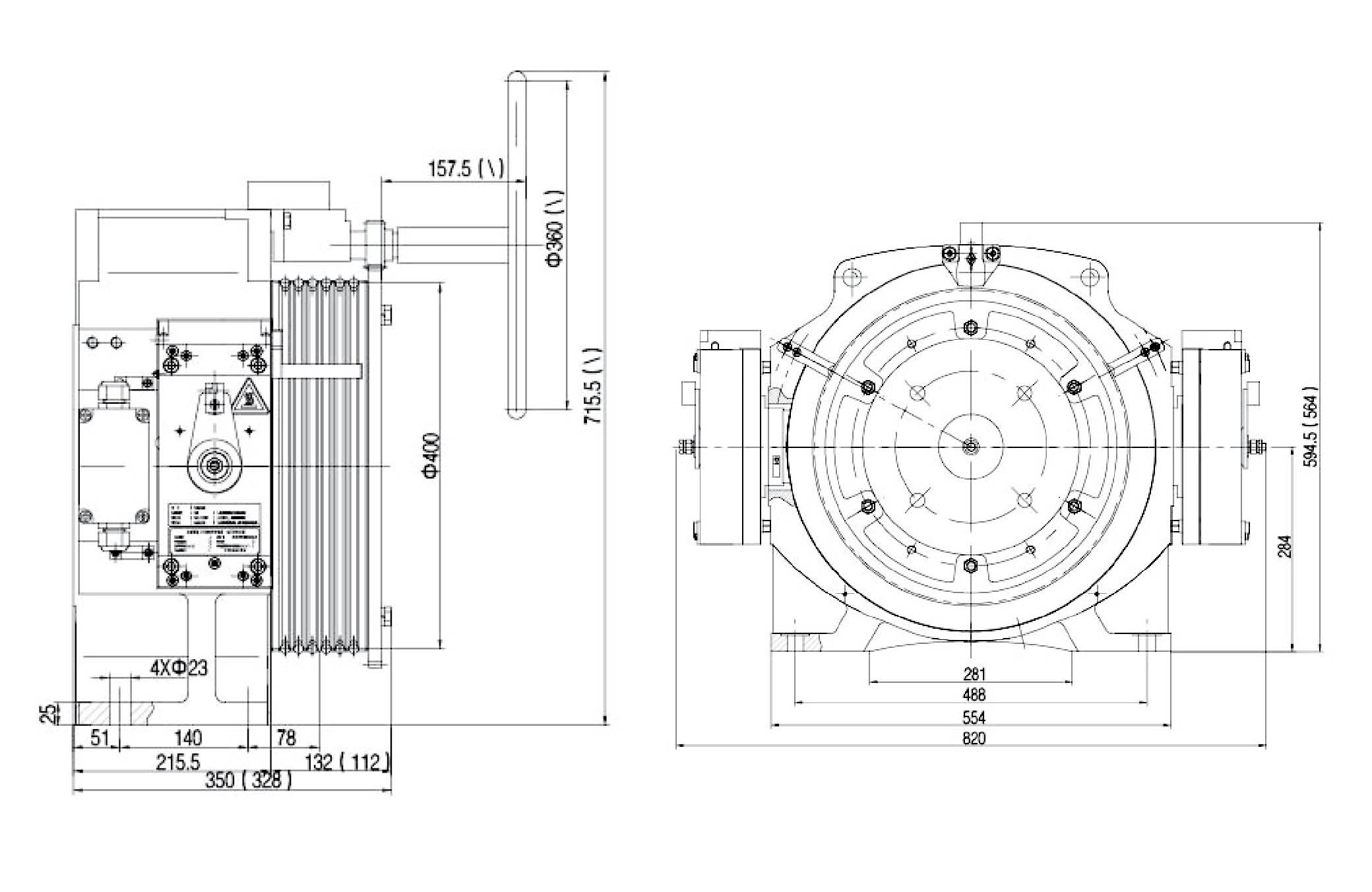

DIMENSION DRAWING

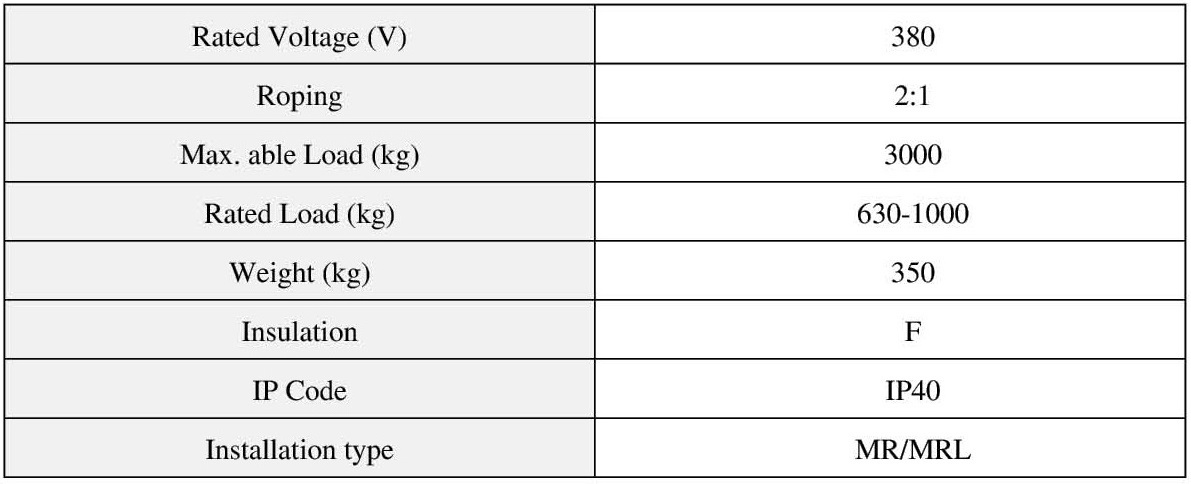

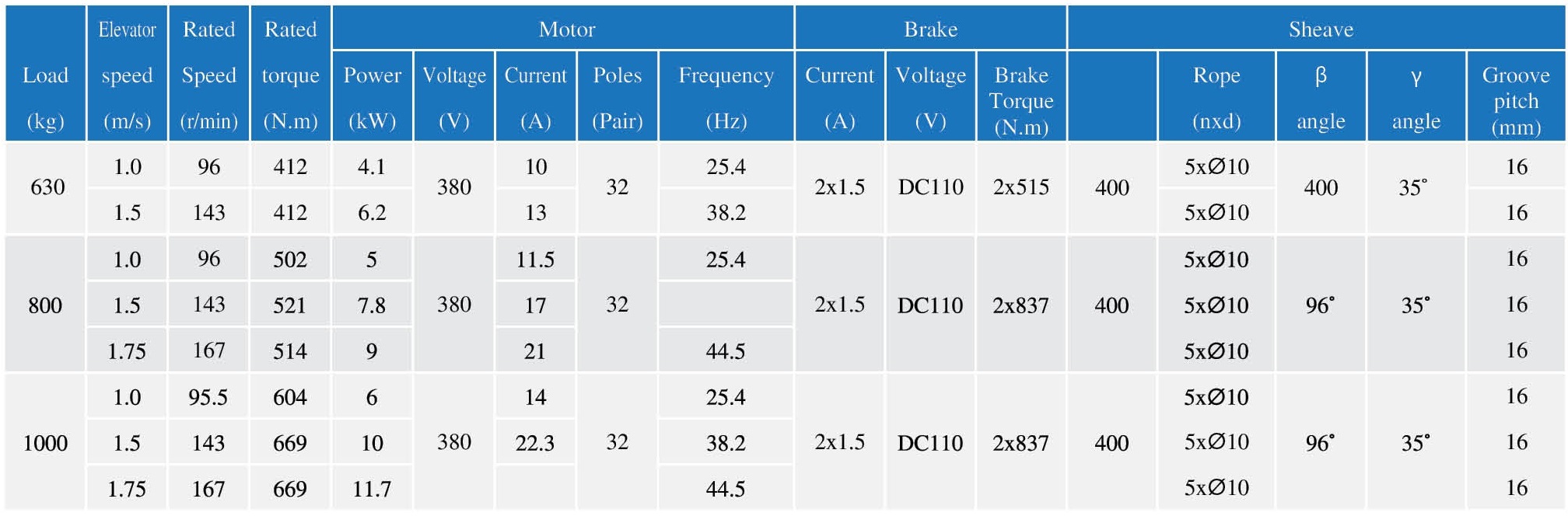

SPECIFICATION
