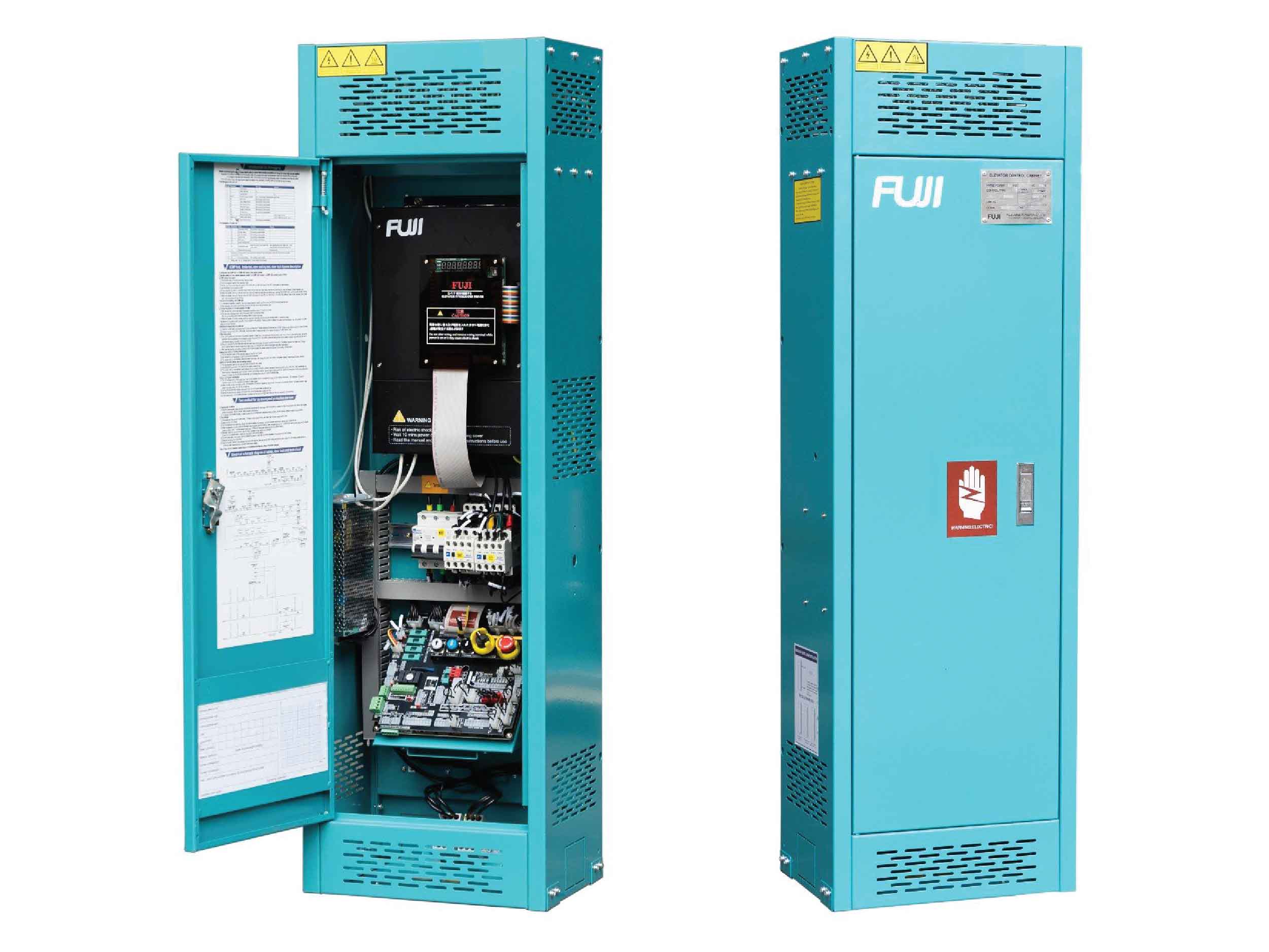

Controller Cabinet FJP8000
Product Introduction
- Adopting FJP8000 integrated controller
- Super anti-interference serial communication method, without the need for shielded wires for hall calls and automotive communication lines
- The terminal board is highly integrated and fully prefabricated cables to prevent incorrect plug insertion.
- Equipped with safety and door circuit node indicator light, as well as independent short circuit socket for easy debugging and maintenance. Equipped with UCMP to prevent accidental movement of the lift car and door lock bypass device
- The cabinet body is an environmentally friendly zinc free galvanized sheet, which is aesthetically pleasing and has small volume. Floor mounted and wall mounted
.jpg)

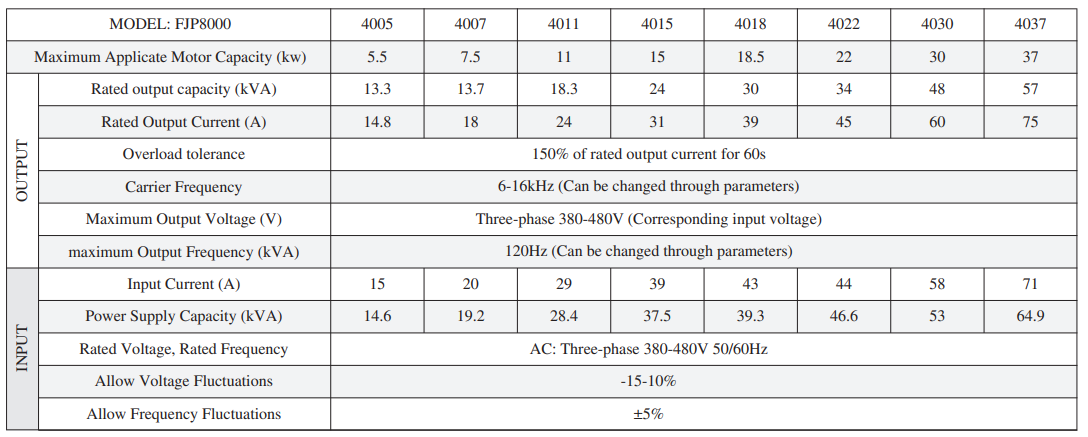

Technical parameter
- Suitable for business elevator, residential elevator, freight elevator, etc
- Maximum speed: 3.5 m/s
- Input voltage: AC 220V/380V/510V
- Power range: 5.5KW-30KW
- Adapted motor: PM/IM
- Adaptive holding brake: current < 5A, DC48V-220V continuously adjustable (1V unit)
- Adapted door operator: AC220V door Operator system
- Maximum floors: 64
- Control mode: single elevator/group control
- Deceleration method: Distance control directly stops
- Size (mm): 1150*350*250 (height, width, thickness)
- Control cabinet weight (kg): 35.5
